VLX 80 Casement Window

VLX 80 Casement Window in Ventura, CA | Lightwell Windows Ventura

The VLX 80 Casement Window is a side-hinged aluminum window built for homeowners in Ventura who want the widest possible opening and the slimmest possible frame. The hardware swings the sash fully outward, catching coastal breezes that fixed windows simply miss. Lightwell Windows Ventura is an authorized ViewLux installation partner, which means we order direct from the manufacturer and install to their exact specifications. If you’re replacing old wood or vinyl windows along the Ventura shoreline or up in the hills, this series deserves a close look. Call (559) 257-2350 and we’ll walk you through pricing for your specific openings.

Call (559) 257-2350

Product Overview – VLX 80 Casement Window

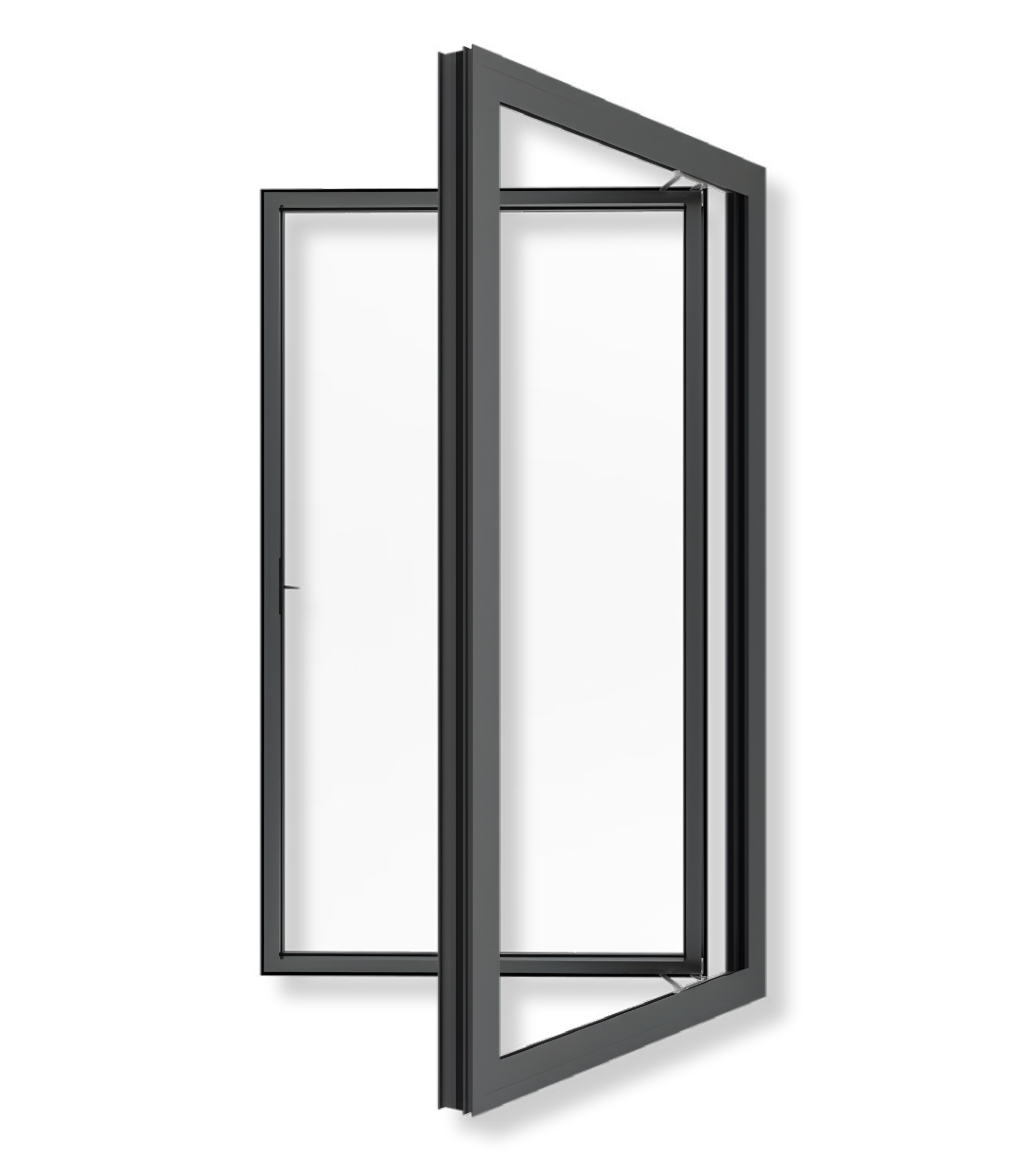

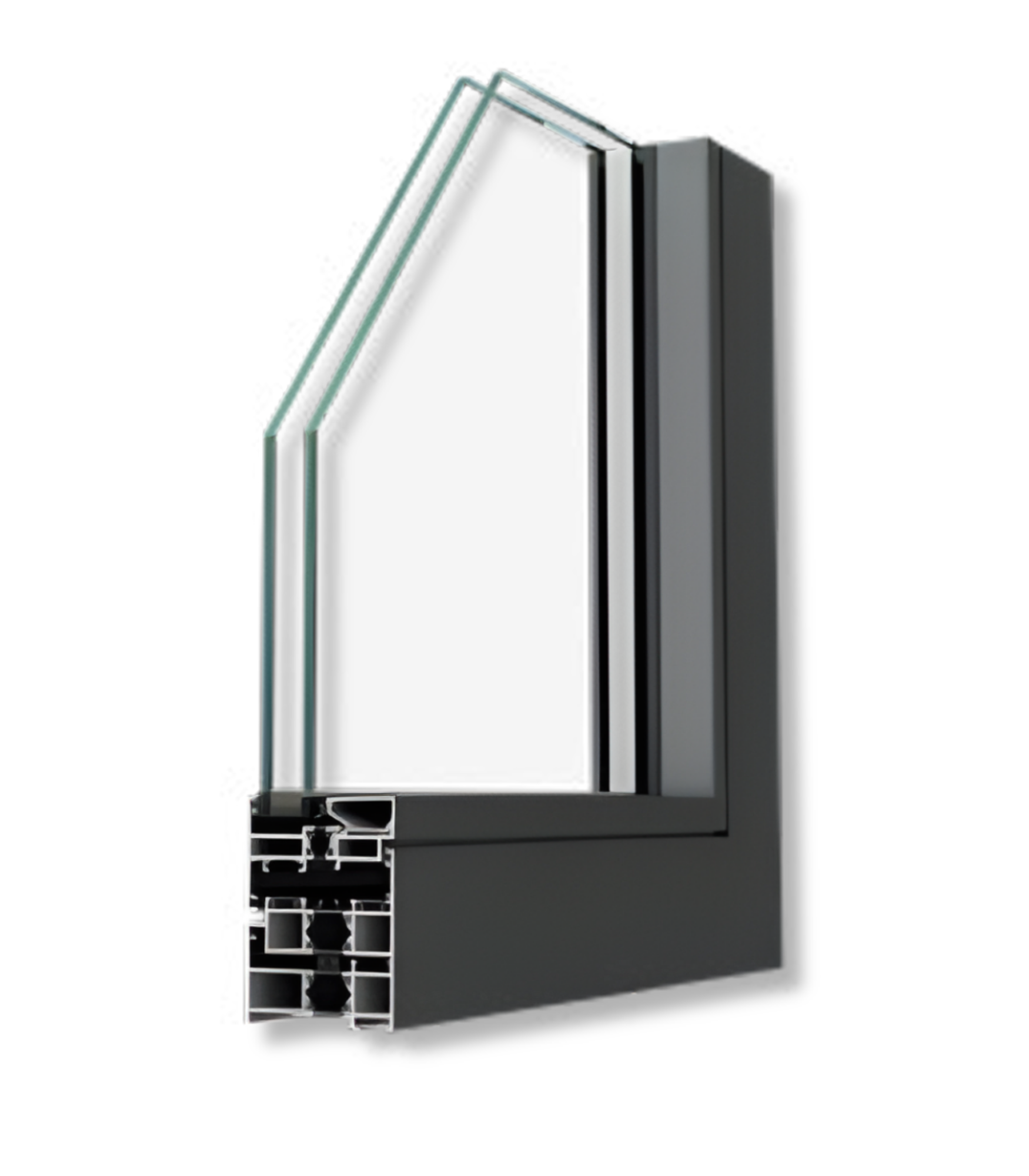

The VLX 80 gets its name from the 80mm profile depth, a measurement that tells you a lot about how the window performs once it’s in the wall. That generous depth lets the frame carry a polyamide thermal break between the interior and exterior aluminum faces, so the metal structure doesn’t conduct heat the way aluminum from the 1980s did. The casement style means the sash hinges on the side and opens outward with a crank handle. This design gives you two things sliding windows cannot: a completely unobstructed opening for airflow, and an airtight compression seal when closed.

Architecturally, the VLX 80 reads almost frameless. The profile width measures just 1.97 inches, which leaves significantly more glass than a typical vinyl window with its thick, chunky frames. For Ventura homeowners with ocean-view lots or courtyards facing the hills, that glass-to-frame ratio is the difference between a window you look at and a window you look through. The aluminum carries a wall thickness of 0.079 inches, which resists racking and deflection in high wind while staying light enough for smooth operation year after year.

We recommend this series most often on mid-century modern homes in College Area, contemporary rebuilds in Pierpont Bay, and anywhere the original aluminum windows are now corroded from decades of salt air. The VLX 80 replaces them with the same material strength, minus the old thermal and noise problems that drove so many Ventura homeowners to swap aluminum for vinyl in the first place.

Technical Specifications

The numbers below are the real specification set for the VLX 80 Casement Window, pulled from ViewLux engineering documents and verified by our install team on active Ventura projects.

• Profile width: 1.97 inches, the visible frame dimension when installed
• Profile depth: 80mm, providing the chamber needed for the integrated thermal break
• Aluminum wall thickness: 0.079 inches, sized for coastal wind-load requirements
• Opening style: side-hinged casement, outward swing via crank handle
• Glass types: Clear, Frosted, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Fixed Screen, Retractable Screen
• Sill options: Standard Sill, Low-Profile Sill for flush interior transitions

Every VLX 80 we order for Ventura customers is custom-fabricated to the measured opening. We do not stock inventory, which means you pick the size, finish, glass pack, screen, and sill configuration and ViewLux builds it to spec. Lead times range from three to six weeks depending on factory volume.

Performance Features

Thermal Efficiency – The polyamide thermal break separates the interior and exterior aluminum profiles, interrupting conductive heat transfer through the frame. Combined with Low-E glass, NFRC-rated U-factors on this series routinely outperform older dual-pane units. Ventura’s mild winters and hot inland afternoons both call for this level of control.

Acoustic Performance – The casement’s multi-point locking mechanism pulls the sash tight against the compression gasket on all four sides. Laminated glass adds a sound-dampening interlayer. Homes on Harbor Blvd or near the 101 corridor notice the difference immediately once the old sliders come out.

Airtightness & Weather Seal – Because the entire perimeter of the sash presses into a continuous gasket, air infiltration drops dramatically compared to sliding windows that rely on brush seals. On windy days in Ventura’s hillside neighborhoods, that seal is what stops the curtains from moving.

Waterproofing – The VLX 80 frame includes internal weep chambers and staggered drainage paths that direct water away from the interior even under direct driving rain. This is paired with our installation method, which adds AAMA 812 low-expansion foam sealant on every perimeter joint for a second waterproofing layer.

Wind Resistance – With a 0.079-inch wall thickness and 80mm profile depth, the VLX 80 is engineered to handle elevated wind-load requirements common in coastal Ventura County. The casement design, where wind pressure pushes the sash tighter into the frame seal, performs especially well in exposure zones where sliders can deflect and whistle.

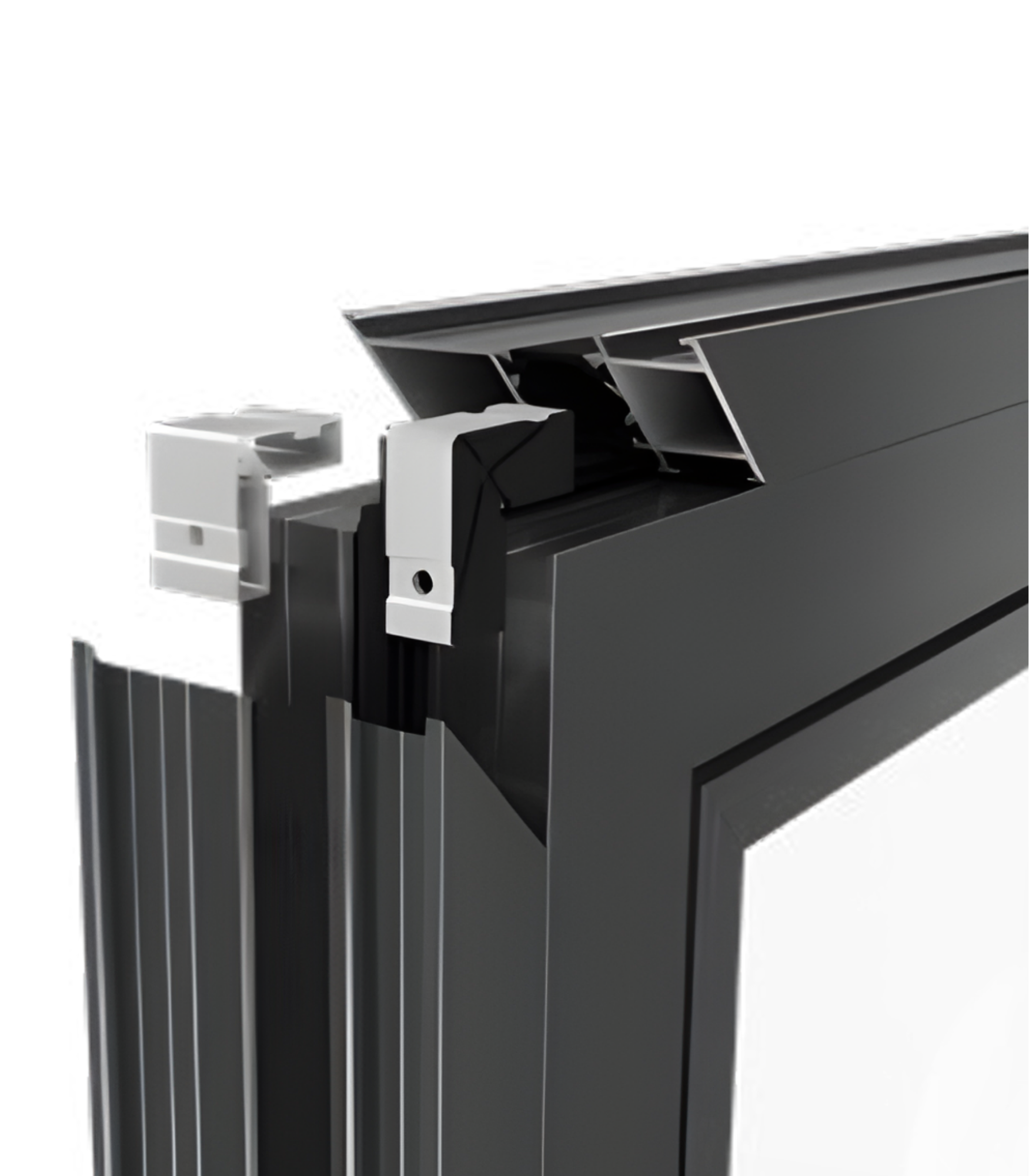

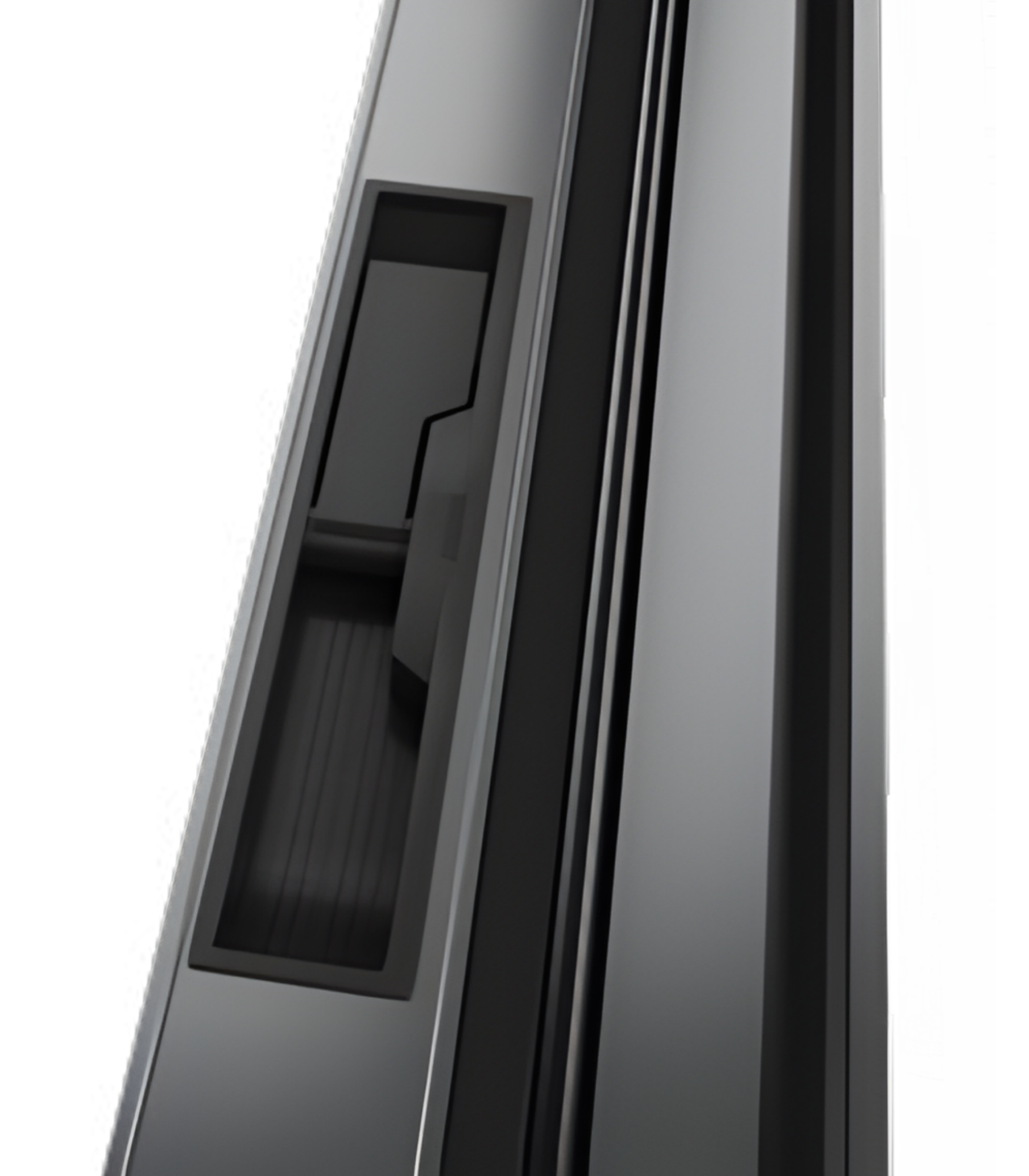

Security & Hardware – The crank mechanism and multi-point locks make a closed VLX 80 casement extremely difficult to pry from the outside. The design inherently resists forced entry, which is a point your insurance provider may recognize. Hardware finishes coordinate with the frame finishes.

Color & Glass Options

ViewLux powder-coats the VLX 80 in six finishes that map well to Ventura architecture. Premium Black frames a view like a camera lens and has become the default choice for modern coastal builds. Pure White brightens interiors and pairs naturally with the classic stucco homes found throughout Midtown Ventura. Anodized Silver offers a metallic, industrial finish that holds up beautifully near salt air. Bronze works on homes with earth-toned exteriors and dark trim. Champagne is a warmer metallic, popular in transitional designs. Teak Wood replicates the look of stained wood without the maintenance issues that plague timber windows near the ocean.

On the glass side: Clear maximizes visible light. Frosted gives privacy for bathrooms and side-yard elevations while still passing daylight. Low-E reflects heat while admitting light, the sensible default in Ventura’s sun-exposed elevations. Tempered glass meets code for safety glazing near doors and in large panels. Laminated glass adds impact resistance, sound reduction, and holds together if cracked, making it the right call for ground-floor windows or homes that need extra storm or intrusion protection.

Installation by Lightwell Windows Ventura in Ventura

A remarkable window performs only as well as the opening it sits in. Lightwell Windows Ventura installs every VLX 80 Casement Window to ViewLux’s published installation standards, which mirror AAMA 2400 and 2410 protocols for replacement window installation. The distinction matters because an improper install does more than leak: it voids the manufacturer’s warranty. You could buy the finest window made and lose full coverage because a subcontractor set the frame out of level and water pooled in one corner.

Our process on a Ventura casement project begins with a detailed pre-install inspection of the existing opening. We measure the rough opening at three points in each direction and check the surrounding framing for hidden dry rot, especially on older beach-proximate homes where salt and fog have worked into every void. Before the new VLX 80 goes in, we verify the sill is solid and properly sloped. Setting the frame level, plumb, and square is non-negotiable. We then fasten through the frame at the manufacturer-specified anchor points and fill the full perimeter gap with AAMA 812 low-expansion foam sealant. Dam-proof flashing details at the sill and head follow before exterior trim goes back on. After the sash is installed and the hardware adjusted, we run a water test around the exterior of the opening and inspect from inside for any sign of infiltration.

Ventura building officials recognize these standards, and our installs pass local inspections the first time. We also take the coastal environment seriously: fasteners and flashing materials are chosen for corrosion resistance in a salt-air climate, and we verify the manufacturer’s wind-load rating against the specific exposure of your home. If you’re in a hillside zone, the requirements are different than a ground-floor condo near the harbor. We handle both.

Frequently Asked Questions – VLX 80 Casement Window

What is the lead time for the VLX 80 Casement Window? The VLX 80 is custom-fabricated to your exact opening dimensions, so expect three to six weeks from final order confirmation to delivery at our Ventura facility. We schedule installation once the units arrive and pass our inspection. Call (559) 257-2350 and we’ll give you a current factory lead time before you commit.

Does the VLX 80 qualify for energy tax credits? The VLX 80 with Low-E glass typically meets or exceeds the U-factor and solar heat gain criteria for qualified energy-efficiency improvements. Eligibility depends on the glass package selected and your specific climate zone, which in Ventura falls under mild coastal conditions. We recommend confirming current program requirements with your tax professional. Call (559) 257-2350 for specs on the glass pack that best matches rebate criteria.

What warranty comes with the Casement Window? ViewLux provides a manufacturer’s warranty on the frame, hardware, and glass, and coverage remains valid only when the window is installed by an authorized partner like Lightwell Windows Ventura using proper AAMA-standard methods. Our workmanship is separately backed by our own installation warranty. We’ll provide the full warranty language in writing before you sign anything.

Can I customize the size of the VLX 80 Casement Window? Yes. The VLX 80 is not a stock-box product. Every unit is fabricated to the dimensions of your measured opening, with operable casements limited to practical sash weights and widths for safe operation over the window’s life. We can pair fixed picture windows with casement units to create larger glass expanses while keeping the operable sections manageable. We’ll design the configuration around your rough openings.

How do I maintain aluminum frames in a coastal climate? Wash the frames and tracks twice a year with mild soap and fresh water, and rinse away salt residue whenever you notice buildup, especially on beachfront homes in Ventura. Lubricate the crank mechanism annually with a silicone-based product. The powder-coated finishes from ViewLux resist corrosion far better than older anodized aluminum, but cleaning off marine salts is the single most important habit for longevity.

Get a Quote – VLX 80 Casement Window in Ventura

If the VLX 80 Casement Window sounds like the right fit for your Ventura home, the next step is a free on-site measurement and written quote. We’ll review your existing openings, discuss glass and finish options, and give you a fixed line-item price. Call (559) 257-2350 to schedule your estimate.

Written by the team at Lightwell Windows Ventura, authorized ViewLux installation partner serving Ventura, CA and surrounding coastal communities.
