VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Ventura, CA | Lightwell Windows Ventura

The VLX 80 Fixed / Picture Window is a non-operable aluminum window built for one purpose: giving you an unobstructed view of Ventura’s coastline, hills, and sky. It’s a maximally glazed fixed frame, meaning the glass runs nearly edge to edge with no visible hardware interrupting the sightline. Homeowners across Ventura choose this window for living rooms facing the Pacific, stairwells that need natural light, and any wall where the view is the point. We’re Lightwell Windows Ventura, an authorized ViewLux installation partner serving Ventura and surrounding communities. Call (559) 257-2350 to discuss your project or schedule a free on-site measurement.

Call (559) 257-2350

Product Overview – VLX 80 Fixed / Picture Window

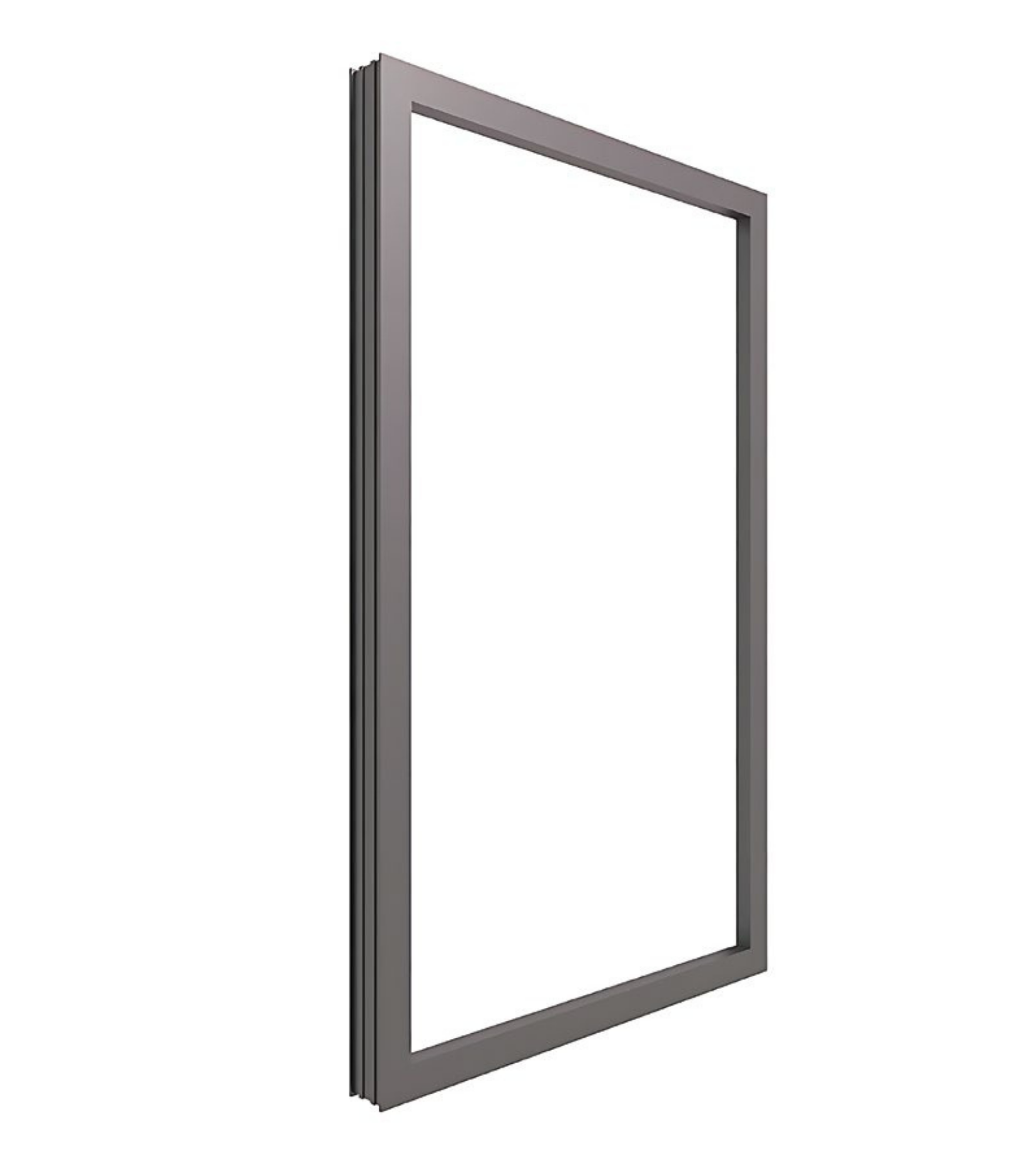

The VLX 80 belongs to a category of window that prioritizes glass over everything else. The aluminum frame is slim by design, with a profile width of just 1.97 inches, so the frame reads as a thin border around the glass rather than a structural interruption. You get floor-to-ceiling views when the wall allows it, and the fixed design means there are no sashes, no cranks, no hinges, and no visible hardware to compete with the view.

This is not a window you open. It’s a window you look through. That makes it ideal for hard-to-reach placements like tall stairwell walls, above kitchen counters, or any opening where ventilation is handled by neighboring casement or slider windows. In Ventura homes, we often see the VLX 80 paired with an operable window on either side, creating what designers call a “picture window arrangement” that balances light, ventilation, and framing.

The engineering underneath matters too. The frame is extruded aluminum with a wall thickness of 0.079 inches, which gives it the rigidity needed for large spans. You can go up to 120 inches wide on a single fixed unit, though most Ventura homes spec something more modest. The fixed configuration also means fewer moving parts, fewer failure points, and a longer service life than operable windows in the same exposure conditions.

Technical Specifications

Here’s what the VLX 80 Fixed / Picture Window offers, spec by spec. These numbers come from the manufacturer’s published data and our own installation experience in Ventura County.

• Frame material: Extruded aluminum, 0.079-inch wall thickness
• Profile width: 1.97 inches (visible frame edge)
• Maximum span: Up to 120 inches wide per unit
• Configuration: Fixed / non-operable (no sash, no hardware)
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Thermal performance: Thermal break technology, NFRC-rated
• Installation standard: AAMA 2400/2410 compliant
• Perimeter sealing: AAMA 812 low-expansion foam sealant

Laminated glass is available for impact resistance, and the unit is wind-load rated to meet Ventura’s coastal building requirements. If your home sits within a designated wind zone, we’ll confirm the rating with your permit package.

Performance Features

Thermal Efficiency

The VLX 80 uses a thermal break in the aluminum frame, which splits the metal into interior and exterior sections with a non-conductive barrier between them. That stops heat from conducting through the frame, something bare aluminum would happily do. NFRC-rated glass packages push the performance further, and in Ventura’s coastal climate, that means less heat gain on west-facing walls and lower cooling bills from June through October.

Acoustic Performance

Fixed windows seal tighter than operable ones by nature, and the VLX 80 benefits from that. Laminated glass adds serious sound reduction for homes near Highway 101, the 126, or the train corridor through midtown Ventura. If traffic noise is a concern, ask us about a laminated glass package tuned for acoustic performance.

Airtightness & Weather Seal

A fixed window has no operable joints, so air infiltration comes down to the frame-to-wall connection and the glazing seal. We install the VLX 80 per AAMA 2400/2410 standards and seal every perimeter joint with AAMA 812 low-expansion foam. The result is a window that doesn’t let Ventura’s afternoon onshore breeze through the gaps.

Waterproofing

Water management starts at the rough opening and ends at the exterior trim. We flash the opening, bed the frame properly, and seal all perimeter joints before the window is ever trimmed out. Combined with the fixed design’s lack of weep-dependent drainage paths, this gives the VLX 80 strong resistance to driven rain, which matters on Ventura’s exposed ocean-facing lots.

Wind Resistance

The VLX 80 is wind-load rated for local climate requirements. The 0.079-inch frame walls and fixed glazing mean the unit resists deflection under pressure, which matters on ridgeline homes in the Ventura hills and any lot exposed to Santa Ana wind events. We’ll verify the required rating for your specific location and elevation during the estimate.

Security & Hardware

There’s no hardware on a fixed window, and that’s the security feature. No latches to pry, no tracks to jimmy. The glass is glazed directly into the frame, and if you want additional protection, laminated glass holds together under impact instead of shattering. For ground-floor installations in Ventura neighborhoods, we recommend laminated glass as a standard upgrade.

Color & Glass Options

The VLX 80 comes in six finishes. Premium Black is the dominant choice for modern and contemporary builds in Ventura, where dark frames contrast sharply against white stucco or wood siding. Pure White suits traditional Spanish and ranch-style homes, blending into the wall plane instead of drawing attention to the frame. Anodized Silver reads as classic aluminum and works well on commercial or industrial-styled projects, while Bronze and Champagne are warmer metallics that pair nicely with earth-toned exteriors. Teak Wood is a woodgrain finish that gives the aluminum frame a warmer, more organic look without the maintenance of real wood.

On the glass side, Clear maximizes transparency and is the default for unobstructed views. Low-E adds an invisible coating that reflects heat while letting visible light through. Frosted gives privacy without losing light, which is useful for bathrooms or street-facing windows. Tempered glass shatters into small safe pieces and is required by code in many locations, including windows near doors or within 18 inches of the floor. Laminated adds impact resistance and sound reduction. Gray Tint and Black Tint reduce glare and solar heat gain, which we see specified often on west-facing Ventura windows where the afternoon sun is relentless.

Installation by Lightwell Windows Ventura in Ventura

Here’s the thing about fixed picture windows: the window itself is only half the equation. An incorrectly installed fixed window leaks, fogs, and eventually fails. We’ve replaced plenty of units in Ventura that were installed by general contractors who missed the flashing details or skipped the perimeter seal. The manufacturer’s warranty protects against defects, but it won’t cover a bad installation.

Every VLX 80 we install goes through the same process. We start with a pre-install inspection of the rough opening, checking for rot, out-of-square framing, and water damage, especially in older Ventura homes where decades of coastal moisture may have compromised the sill. We set the frame level, plumb, and square, shimming as needed so the fixed glass sits true in the opening. We seal the perimeter with AAMA 812 low-expansion foam, which creates an airtight, watertight bond without distorting the aluminum frame. We flash the exterior to shed water away from the opening. Then we do a final water test before trimming and cleanup.

Ventura’s climate is relatively forgiving compared to other coastal markets, but the marine air still tests seals over time. Salt air is less aggressive here than in other oceanfront communities, but it’s present, and we account for it in our flashing and sealant choices. If your project requires permits, we pull them and handle the inspection process. That’s part of the job, not an add-on.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Ventura

If you’re planning a window replacement or new construction in Ventura and want the VLX 80 Fixed / Picture Window, let’s talk. We’ll measure your openings, review glass and finish options, and give you a written line-item quote before any work begins. Estimates are free.

Call (559) 257-2350 to schedule your free on-site measurement with Lightwell Windows Ventura.

Written by the team at Lightwell Windows Ventura, authorized ViewLux installation partner serving Ventura, CA.
