VLX 100 Pivot Door

VLX 100 Pivot Door in Ventura, CA | Lightwell Windows Ventura

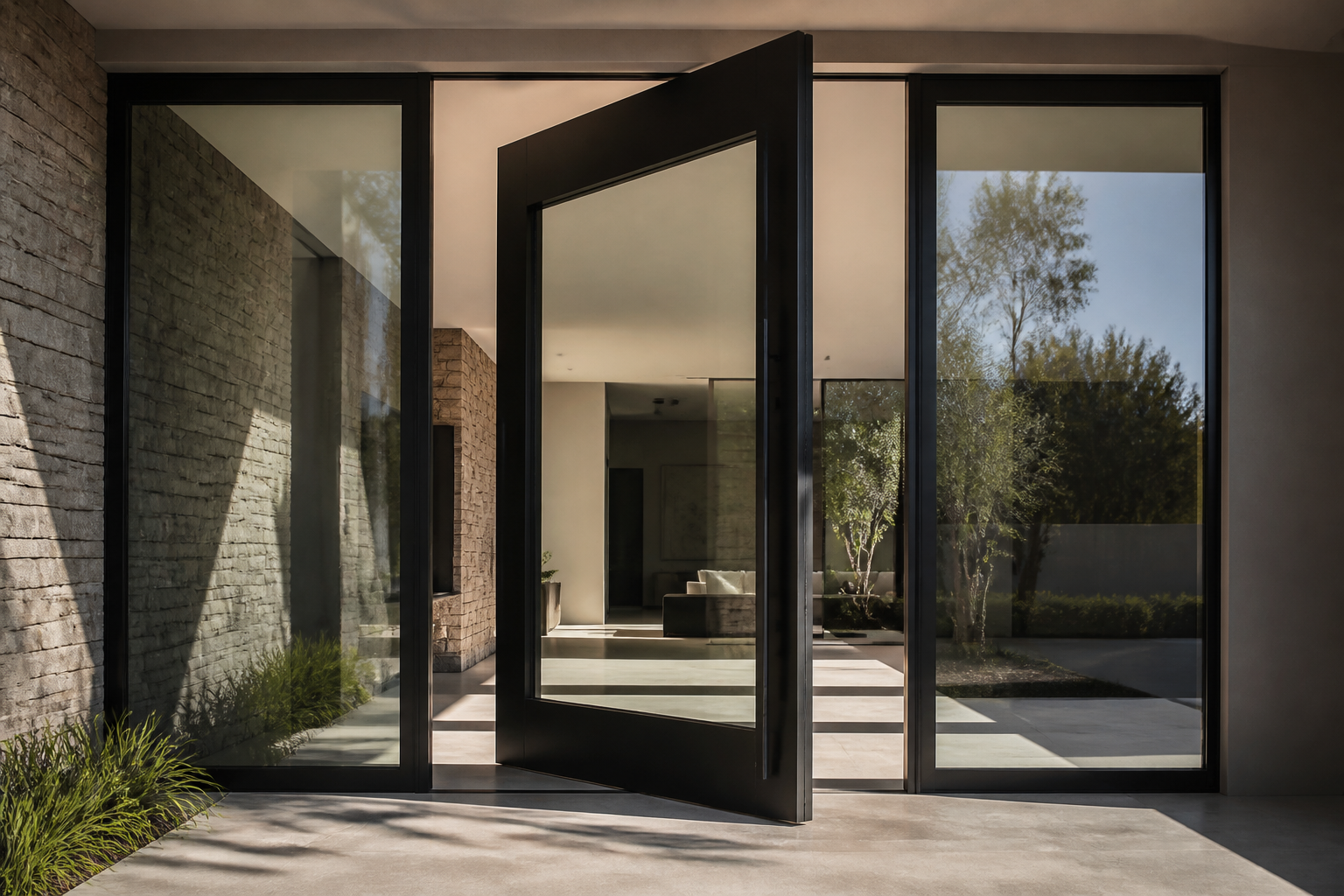

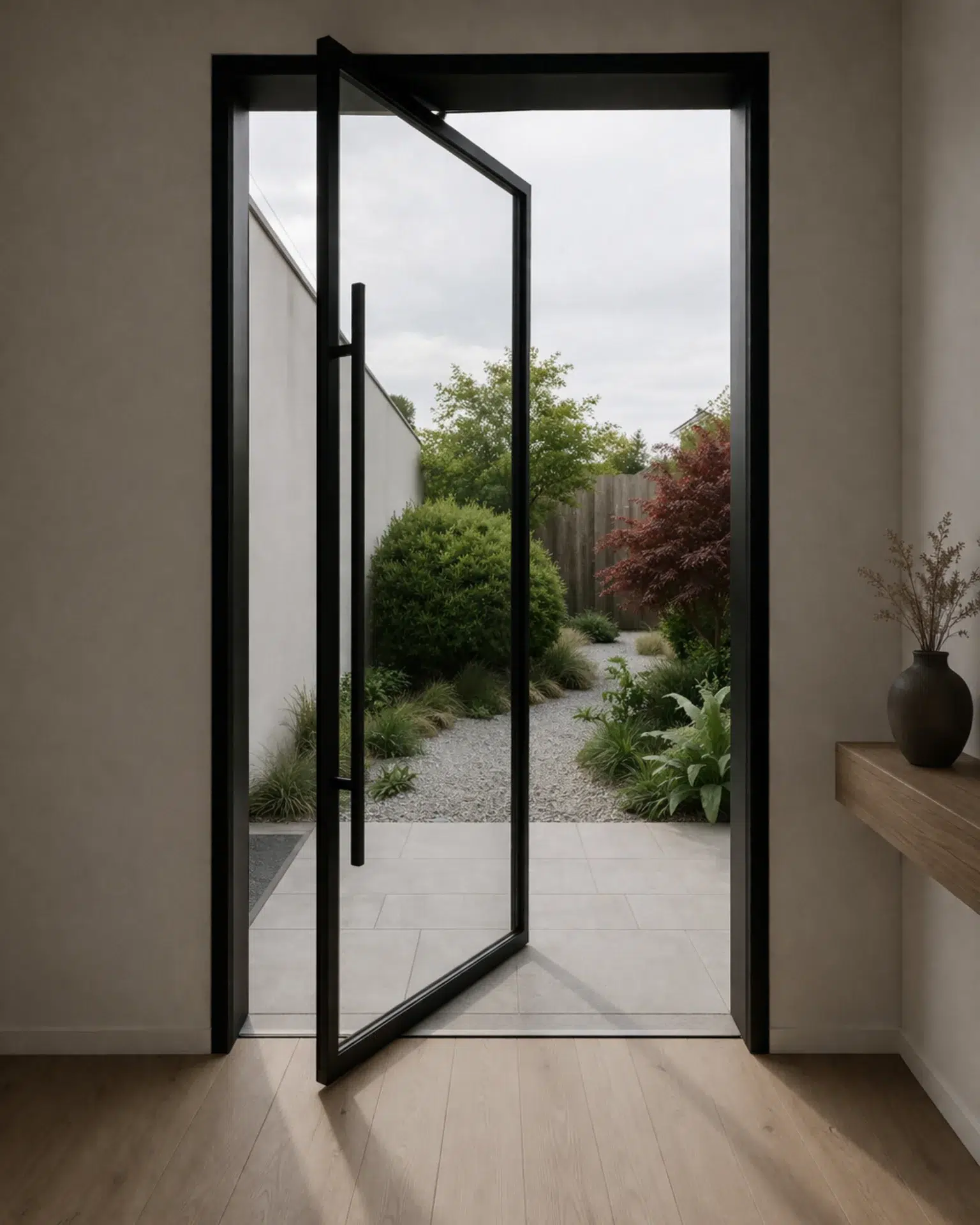

The VLX 100 Pivot Door from ViewLux is the kind of product that changes how a home feels from the moment you walk in. It’s a heavy-duty aluminum door that rotates on a vertical center axis instead of swinging on side hinges, which lets you run oversized glass panels up to 60 inches wide and 120 inches tall. In Ventura, where coastal light and indoor-outdoor living drive so much of residential design, this door is a serious architectural statement. Lightwell Windows Ventura is an authorized ViewLux installation partner, so we supply, fit, and warranty this door locally, right here in Ventura. Call (559) 257-2350 to talk through your project and get a free on-site measurement.

Call (559) 257-2350

Product Overview – VLX 100 Pivot Door

The VLX 100 is built for homeowners and architects who want a front entry, back entry, or interior transition door that functions as a focal point. Because the pivot point sits in the center of the panel rather than along one edge, the door’s weight is distributed differently than a traditional hinged door. That center-axis rotation is what allows a massive glass and aluminum panel to swing smoothly with one hand, even at max spans of 60 by 120 inches.

Structurally, this is a heavy-duty aluminum door. The profile is 2.56 inches wide with a wall thickness of 0.098 inches, which gives the frame real rigidity against wind, daily use, and the coastal air we deal with throughout Ventura County. The center pivot system and reinforced frame mean you get clean sightlines without a bulky threshold or excessive framing. We regularly recommend this door for modern homes in neighborhoods like Midtown Ventura and newer builds out toward East Ventura, where an oversized glass entry becomes a defining element of the home’s whole elevation.

What we appreciate about the VLX 100 specifically is that it does not sacrifice performance for its looks. Thermal breaks in the aluminum framing, low-E glass options, and impact-resistant laminated glass keep the door functioning as a true weather barrier, not just a pretty panel. That matters in Ventura, where afternoon marine winds and salt air are part of the daily environment.

Technical Specifications

The VLX 100 Pivot Door is engineered to handle custom sizing without losing structural integrity. ViewLux built a modular frame and pivot system that accommodates large-format glass while the aluminum profile keeps everything square and true. Here are the numbers that matter for builders and homeowners:

• Frame material: Extruded aluminum with thermal break
• Profile width: 2.56 inches (65 mm)
• Wall thickness: 0.098 inches
• Maximum panel size: Up to 60 inches wide × 120 inches tall
• Glass options: Clear, frosted, obscure, Low-E, tempered, and laminated
• Finish options: Premium black, pure white, anodized silver, bronze, champagne, and teak wood grain
• Rotation: Vertical center-axis pivot, offset pivot available for custom reveal geometry
• Standard compliance: NFRC-rated thermal performance, AAMA 2400/2410 installation standard, AAMA 812 low-expansion foam sealant

Every VLX 100 we order for Ventura-area projects is specified to the individual opening. There is no stock sizing on this door, which means your hinge point, swing direction, and glass package are selected for your home, not pulled off a shelf.

Performance Features

Thermal Efficiency – The aluminum frame includes a thermal break that separates the exterior and interior metal surfaces. That barrier slows heat transfer significantly versus a non-thermally-broken door. NFRC-rated glass packages are available, and in Ventura’s mild coastal climate, double-pane low-E glass keeps homes comfortable without northern-California overkill.

Acoustic Performance – Laminated glass and a tightly gasketed frame noticeably reduce outside noise. For homes near Ventura Boulevard, the 101 freeway corridor, or the train line, we recommend laminated glass on the VLX 100. It dampens the constant hum in a way standard clear glass cannot.

Airtightness & Weather Seal – The VLX 100’s perimeter gaskets and threshold design are tested for air infiltration, and we install every unit with AAMA 812 low-expansion foam sealant on all perimeter joints. That combination stops drafts before they start and keeps interior air where it belongs.

Waterproofing – Coastal Ventura sees real wind-driven rain during winter storm cycles, and a pivot door has no bottom track to trap water. The sill design, the AAMA 812 sealed perimeter, and our AAMA 2400/2410-compliant installation work together to shed water outward and away from the opening.

Wind Resistance – At 0.098-inch wall thickness with a 2.56-inch profile, the VLX 100 is rated for the wind loads we actually experience in Ventura County. For properties in higher-exposure areas along the coastline or on ridgelines, we can spec an upgraded anchoring package with engineering support to keep the door certified for your site.

Security & Hardware – The pivot hardware is concealed within the frame, and the door accepts conventional multi-point locking hardware and impact-resistant laminated glass. A laminated panel holds together under impact rather than shattering, which is a meaningful protection factor in a sizable glass entry.

Color & Glass Options

Premium black is our most-ordered finish in Ventura, and it suits the modern and contemporary homes being built and renovated across the city. Pure white fits the coastal cottage and farmhouse styles you see around Pierpont and the Keys. Anodized silver is the traditional aluminum look, durable and understated, while bronze offers a warm metallic tone that works well with earthy plaster and tone-on-tone exteriors. Champagne leans slightly warmer and reads almost custom against stacked stone. Teak wood-grain is a powder-coated finish that mimics natural timber, giving the door a softer organic presence without the maintenance of real wood in salt-laden Ventura air.

For glass, clear maximizes light and views. Frosted and obscure are for entries where privacy matters, such as a guest bath, office, or a street-facing front door. Low-E glass reduces heat gain and UV exposure, which protects flooring and furniture near the opening. Tempered is mandatory for safety in any panel this size. Laminated adds impact resistance and acoustic dampening, and it is the option we recommend for Westside and ocean-front homes in Ventura where storms, noise, and security are top considerations.

Installation by Lightwell Windows Ventura in Ventura

We install the VLX 100 Pivot Door the same way we install multi-panel door systems: slowly, precisely, and to the manufacturer’s specification. Every project starts with a pre-installation inspection of the rough opening. We check the floor for level, the jambs for plumb, and the header for square before we ever bring the door out of its packaging. A pivot door of this size will not forgive a sloppy opening. If the opening is out, the door binds, the reveal opens unevenly, and the glass carries stress it was never designed for.

From there, the frame is shimmed and anchored level, plumb, and square. We apply AAMA 812 low-expansion foam sealant on all perimeter joints, then seal and flash the opening per AAMA 2400/2410 installation standards. That standard matters in Ventura, where wind-driven rain off the ocean can test a door opening’s waterproofing year after year. We run a water test on the closed assembly before we call the job complete, and we inspect the perimeter seal one final time after the door has been cycled.

We want to be direct: improper installation voids the ViewLux manufacturer warranty. A pivot door is not a swap-in, swap-out product. The pivot mechanism, the weight of the panel, and the gasketing all must be set correctly for the door to operate and seal as engineered. When we install, the warranty stays intact, and you get the full performance the product was built for, in Ventura, under our local climate conditions.

Call (559) 257-2350 to schedule your free on-site measurement and start the process.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in Ventura

The VLX 100 Pivot Door is a serious investment in how your home looks, lives, and performs. Let us measure your opening, spec the correct glass and finish, and price the project with a fixed, written quote. Call (559) 257-2350 to schedule your free on-site measurement in Ventura, or let us know the best time to call you. We will come out, assess the site, and get the process started.

Written by the team at Lightwell Windows Ventura, authorized ViewLux installation partner serving Ventura, CA.
