VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Ventura, CA | Lightwell Windows Ventura

The VLX 100 Swing / Entry Door is a modern aluminum entry system built around a slim 2.56-inch profile and a clean, uninterrupted sightline. For Ventura homeowners replacing a dated front door or finishing new construction, it delivers what most entry doors can’t: real thermal performance, multi-point security hardware, and a frame that won’t warp in coastal air. Lightwell Windows Ventura is an authorized ViewLux installation partner, which means you get factory-backed product support and a local crew that installs to AAMA standards, not just “good enough.” Call (559) 257-2350 to talk specs, lead times, or schedule a free measurement at your Ventura home.

Call (559) 257-2350

Product Overview – VLX 100 Swing / Entry Door

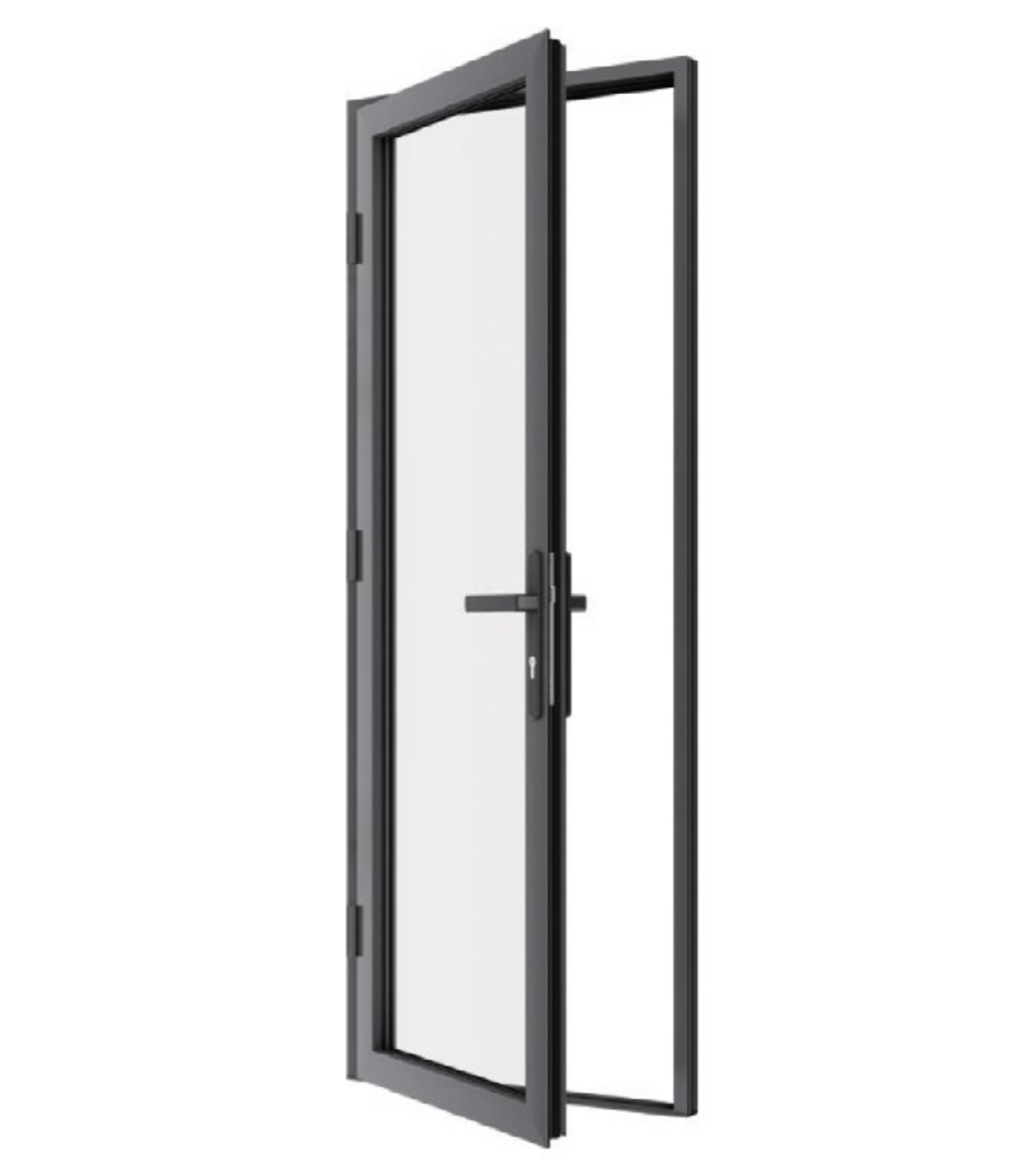

The VLX 100 is a single swing entry door with a minimalist aluminum frame and a multi-point locking system. The design intent is simple: strip away everything that doesn’t need to be there. The result is a door that reads as nearly all glass, with narrow frame lines that let in maximum light and hold up to Ventura’s salt-heavy marine air without rusting, swelling, or sagging the way wood and vinyl often do.

We recommend this series most often for contemporary and mid-century homes in Ventura, but it holds its own on Spanish-style and ranch properties too, particularly in a matte black or bronze finish. The VLX 100 is also a popular choice for secondary entries, patio-facing doors, and ADU entrance doors where homeowners want the same architectural language as their ViewLux windows.

What separates this door from budget aluminum systems is the engineering underneath the finish. The frame uses a thermal break to stop heat and cold from conducting through the metal. The multi-point lock engages at multiple points along the frame, not just a single latch at the handle. And the hardware is designed to cycle thousands of times without loosening. In Ventura, where doors face direct afternoon sun on the west side and damp fog on the east side, those details are the difference between a door that lasts 5 years and one that lasts 30.

Installing the VLX 100 is not a side job. It requires precise shimming, perimeter sealing, and alignment. That’s where Lightwell Windows Ventura comes in. We handle the full process: removal of your old door, inspection of the rough opening, installation, trim, and final testing. Call (559) 257-2350 to discuss whether the VLX 100 fits your project.

Technical Specifications

Here’s what you’re getting with the VLX 100 Swing / Entry Door, in plain numbers and options. These are the specs we work from on every Ventura installation.

• Frame material: Extruded aluminum with thermal break
• Wall thickness: 0.098 inches, heavy enough to stay square over decades of daily use
• Profile width: 2.56 inches, slim enough to preserve your view and light
• Maximum span: Up to 48 inches wide for a single panel
• Locking: Multi-point locking system engaging along the full height of the frame
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or none
• Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 installation compliance, AAMA 812 low-expansion foam perimeter sealant
• Impact resistance: Laminated glass option available for added security and storm performance

Performance Features

Thermal Efficiency. The VLX 100 uses a thermal break inside the aluminum frame, which interrupts the metal-to-metal path that normally pulls heat out of your home in winter and pushes it in during Ventura’s summer heat. Combined with Low-E glass, the door earns NFRC energy ratings that matter for comfort and utility bills.

Acoustic Performance. If you live near Main Street, the 101 corridor, or a busy Ventura intersection, you know how much a solid entry door matters for quiet. The VLX 100’s laminated glass option and full-perimeter weather seals cut down on traffic hum and street noise noticeably compared to older hollow or wood doors.

Airtightness & Weather Seal. No door keeps air out unless the gap between frame and rough opening is sealed correctly. We install every VLX 100 using AAMA 812 low-expansion foam on all perimeter joints, per AAMA 2400/2410 installation standards. That stops the drafts that older Ventura homes are known for.

Waterproofing. Ventura’s winter rains come in bursts, and a leaking entry door is one of the most common callbacks in this industry. The VLX 100’s frame design, combined with proper sill pan flashing and perimeter sealing, is built to keep water on the outside where it belongs. We water-test each installation before we call it done.

Wind Resistance. Ventura County has wind exposure requirements that differ block by block, especially in beach-adjacent zones and hillside properties. The VLX 100 is wind-load rated for local climate conditions, and we verify the rating against your specific address and exposure before ordering.

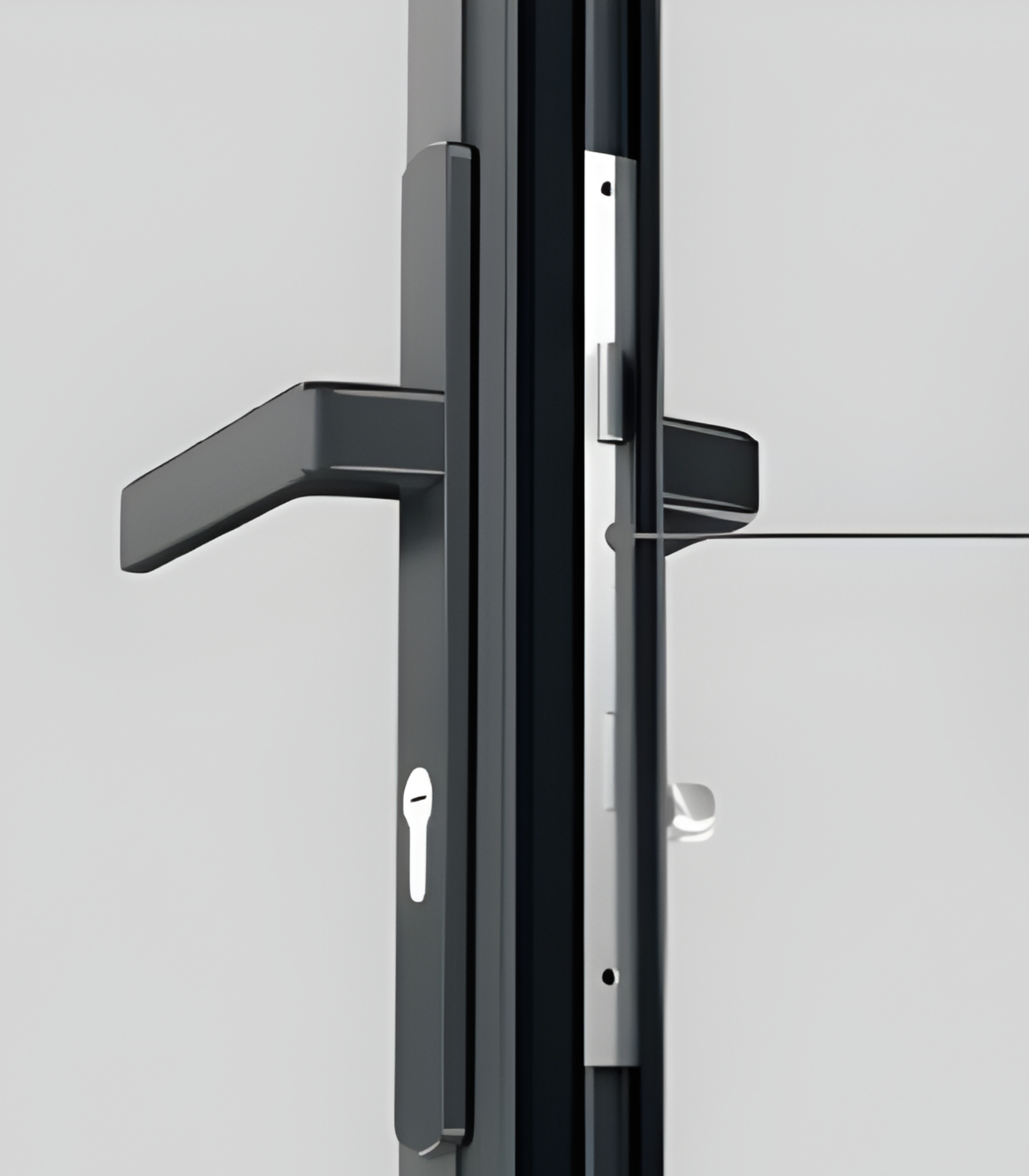

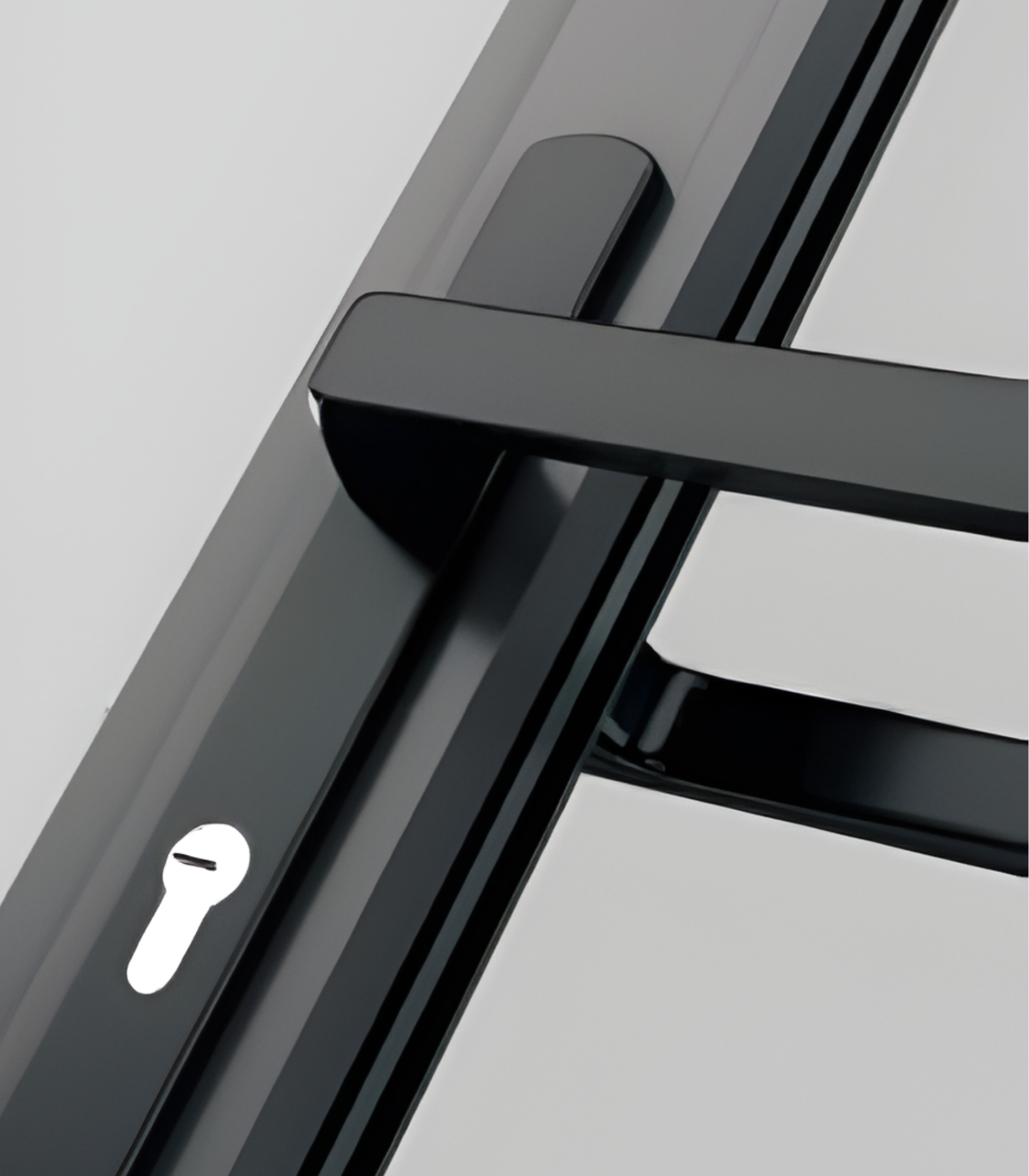

Security & Hardware. The multi-point lock on the VLX 100 is a genuine security upgrade over a standard single-point deadbolt. The locking points engage at multiple positions along the frame, which makes the door significantly harder to force open. Laminated glass adds another layer of break-in resistance and holds together if shattered.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the most requested in Ventura right now, especially on white stucco homes and modern farmhouse designs where a dark entry makes a strong contrast. Pure White blends cleanly into traditional and coastal exteriors. Anodized Silver has a raw, industrial look that works on mid-century and contemporary builds. Bronze is a warmer dark tone that reads less stark than black and pairs well with wood accents. Champagne is a lighter warm metallic that suits Spanish and Mediterranean styles common in older Ventura neighborhoods. Teak Wood is a wood-grain finish on aluminum, giving you the look of timber without the maintenance or rot risk in coastal humidity.

For glass, Clear and Low-E are the most common choices for entry doors where light matters. Frosted and Obscure give privacy while still letting daylight through, which is useful for doors facing the street or a close neighbor. Tempered glass is safety-rated and required in many door applications by code. Laminated glass adds impact resistance and sound damping. In Ventura’s coastal environment, we always recommend at least Low-E, and laminated is worth strong consideration for west-facing doors that take direct afternoon sun and ocean breeze.

Installation by Lightwell Windows Ventura in Ventura

An entry door is only as good as the install. That’s the honest truth. The VLX 100 is a precision product, and if it’s set out of level or sealed with the wrong materials, you’ll deal with sticking, drafts, and water intrusion for years. Improper installation also voids the manufacturer warranty. That’s not a scare tactic; it’s the reality of every quality door brand, ViewLux included.

Here’s how we do it at Lightwell Windows Ventura. First, we inspect the existing opening and framing before we order anything. We check for rot, out-of-square rough openings, and water damage. We fix what needs fixing before the new door arrives. When the VLX 100 goes in, we set it level, plumb, and square, shimming as needed so the slab swings true and the weather seals compress evenly around the full perimeter.

Next, we seal every perimeter joint with AAMA 812 low-expansion foam and finish the exterior with proper flashing and sealant. The whole process follows AAMA 2400/2410 installation standards, which is the benchmark for window and door installation in the U.S. After the door is secured, we run a water test on the threshold and sill area and cycle the door several times to confirm smooth operation. Then we clean up, haul away the old door, and walk you through the hardware and locking system.

In Ventura specifically, we account for two things on every install: coastal moisture and sun exposure. Marine air accelerates corrosion on cheap hardware, and the wrong sealant breaks down fast in salt and UV. We use materials rated for this environment, not whatever is cheapest at the supply house. We also check wind exposure for your specific street and elevation, because a door that works fine in midtown Ventura may need a different rating up in the hills above Foothill Road or out near the harbor.

Call (559) 257-2350 to schedule a free on-site measurement. We’ll bring finish samples and glass options so you can see everything in your actual light, at your actual entry.

Frequently Asked Questions – VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door? Most VLX 100 doors ship in 3 to 6 weeks depending on the glass package and finish you choose. Custom sizes and laminated glass can add a week or two. Lightwell Windows Ventura confirms lead time when you place the order, and we coordinate installation around the delivery date. Call (559) 257-2350 and we’ll give you a current estimate based on your exact configuration.

Does the VLX 100 qualify for energy tax credits? The VLX 100 can qualify for federal energy efficiency tax credits when ordered with qualifying Low-E glass packages. The credit is tied to the glass’s solar heat gain coefficient and U-factor for the climate zone, and Ventura falls in a zone where the right configuration does meet the threshold. We can look up the exact NFRC ratings for your chosen glass and tell you whether your configuration qualifies before you commit.

What warranty comes with the VLX 100 Swing / Entry Door? ViewLux provides a manufacturer warranty on the door frame, finish, and hardware, and the glass carries its own coverage. Professional installation by an authorized partner like Lightwell Windows Ventura keeps that warranty intact. Improper installation, which we see often from general handymen, voids it. We’ll walk you through exactly what’s covered in writing before you sign anything. Call (559) 257-2350 for details on your specific door configuration.

Can I customize the size of the VLX 100? Yes. The VLX 100 is built to your rough opening dimensions, up to a 48-inch panel width for a single door. If you need something wider, that typically requires a different configuration, and we’ll talk through your options. Standard Ventura entry openings work well, but if you have an older home with non-standard framing, we’ll measure and order to fit exactly.

How do I maintain an aluminum frame door in Ventura’s coastal climate? Aluminum frames need very little maintenance. Wipe the frame and threshold down with mild soap and water two or three times a year, especially if you’re close to the beach where salt film builds up. Keep the track and weather seals free of sand and debris, and lubricate the hinges and locking points annually with a dry silicone spray. That’s the whole routine. No painting, no sealing, no rust treatment needed. Call (559) 257-2350 if you ever have a question about your door’s hardware or seals.

Get a Quote – VLX 100 Swing / Entry Door in Ventura

If you’re considering the VLX 100 for your Ventura home, the next step is simple. Call (559) 257-2350 and we’ll schedule a free on-site measurement. We’ll bring samples, check your rough opening, and give you a written quote with no surprises. You’ll know exactly what the door costs and when it can be installed. Call today and let’s get your entry sorted.

Written by the team at Lightwell Windows Ventura, serving Ventura, CA as an authorized ViewLux installation partner.
